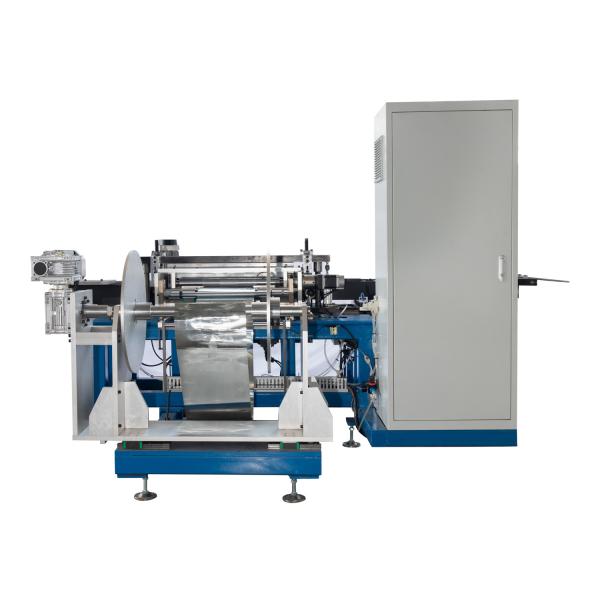

260021001500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box

Product Description

The size of the fully automatic sawtooth nail machine is 2300mm in total length, 2000 mm in total width, 1800 mm in total height, and 1.5t in total weight.

2600*2100*1500 Metal Blade Automatic Saw Blade Fixing Machine For Aluminum Foil Box

Electrical power and configuration:

the electrical power of the whole machine is 12.5KW, and the voltage is 380V. The servo motor adopts the Korean LS (LG) brand, and the motion controller adopts the German BECKHOFF brand. The whole machine has a one-year warranty.

The mold material is Japanese made DC53 material, and the heat treatment is entrusted to a Japanese company for processing. The warranty period is 20 million molds.

Production speed:

Depending on the size of the product, the production speed per minute ranges from 70 to 90 times. The longer the product, the slower the speed; the shorter the product, the faster the speed.

length of the color box：between 180 mm and 600 mm

width of the color box ： between 180mm and 400mm

Position: Any position within 60mm

Production operation instructions

The material of the serrated strip is tinplate or 5052 aluminum, and it is necessary to purchase roll packaging materials. Generally, the roll diameter of each roll of material is controlled within 900 millimeters. The machine has an automatic refueling system that specifically refuels materials to avoid mold damage. It is recommended to use stamping oil for aluminum foil lunch boxes, which is food grade and volatile. Before installation, it is necessary to prepare a 6-square meter five core wire and an 8mm gas pipe with a voltage of 380V.

Item	Value
Product Name	Saw Blade Press Machine
Product Type	HAFA-120
Power Source	Xinjie Servo Motor 7.5KW
Max.Material Width	450mm
Max.Material Diameter	600mm
Color box width range	200-350mm
Color box length range	150-450mm
Sawtooth length range	150-450mm
Sawtooth width range	6-8mm (Can be adjusted arbitrarily)
Speed	85-140 pcs/min
sensor	Panasonic
weight	1200kg
Feeding accuracy	0.1mm
Feeding Machine Power	14KW
Saw blade material	Tinplate/Aluminum
